Technology

The leader in the field of intelligent audio and video software and hardware segmentation

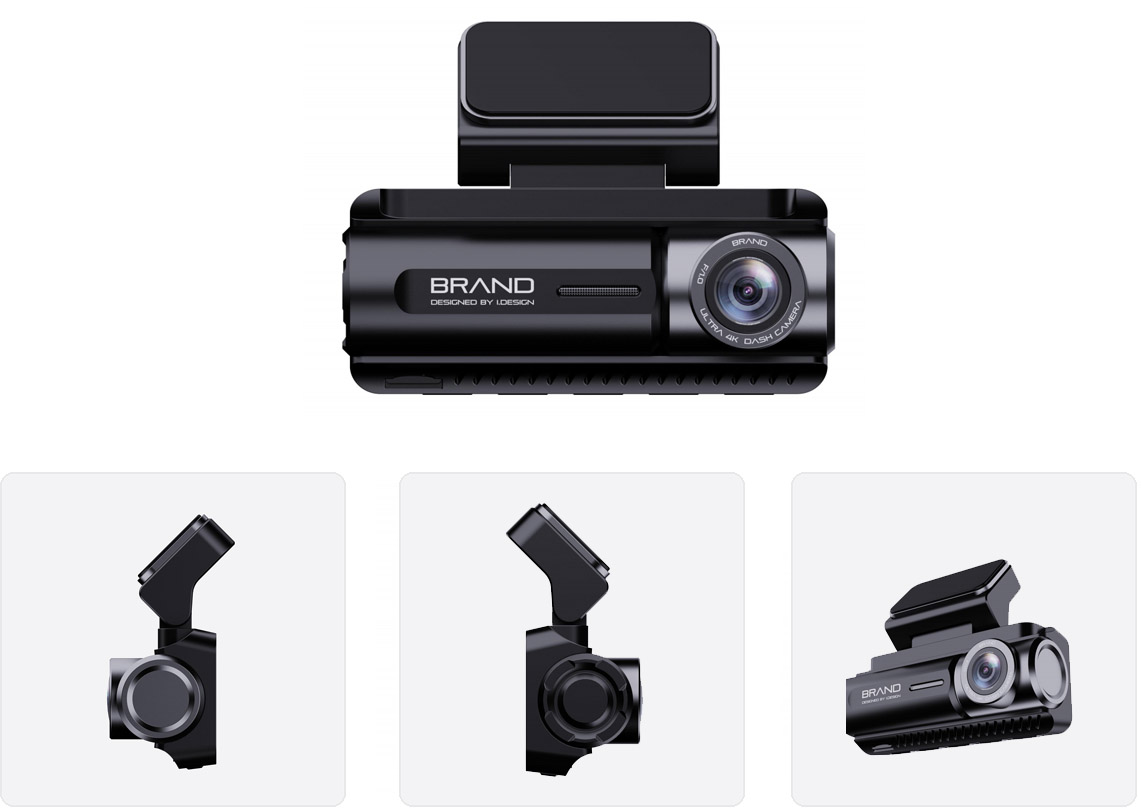

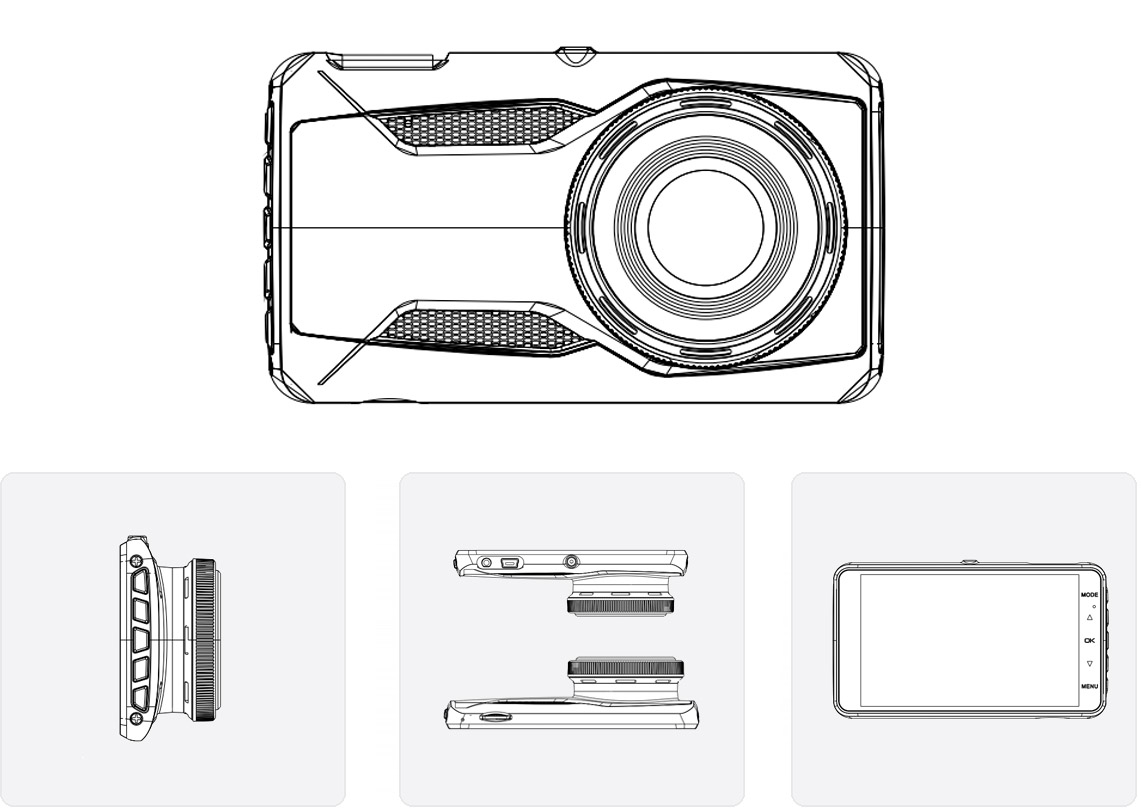

Body & Bracket View



Excellent performance

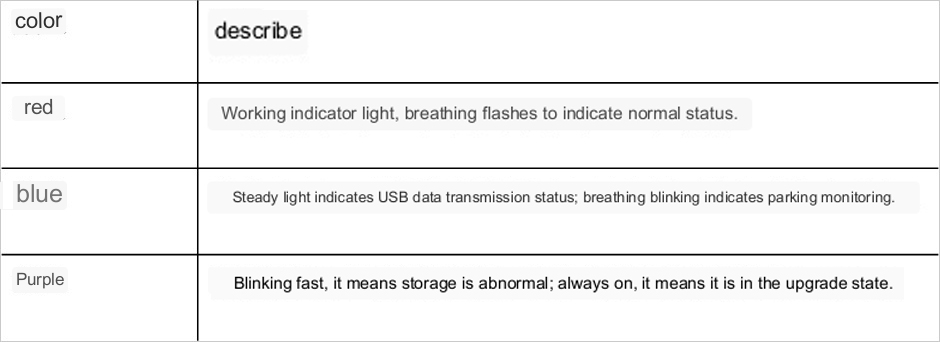

Instructions for indicator lights

Video codec:H.265 hardware encoding, 2196P@30fps ultra-high definition video encoding
Image sensor: 8 megapixel CMOS sensor
Lens: 6 sets of full HD glass lenses, diagonal 140°, F1.8 aperture
Wireless Connection: Built-in Wi-Fi, 5.8GHz, Wi-Fi
Video output: Wireless video output, support Android/ios system devices
Gyro sensor: Built-in high-precision 6-axis gyroscope, collision latch, sensitivity can be adjusted through APP
Camera pixel: 3840×2196
Camera pixel: 2196P

Instructions for indicator lights

Features
6 sets of full HD glass lenses each Every detail must be present

Intelligent Voice
Interactively move your mouth to capture your imagination

When encountering beautiful scenery on the road, just say "I want to take a photo" to capture and share with millions of car friends in the community.
Open recording
I want to take a photo

Voice wake-up command

I want to take pictures/I want to video
Turn recording on/off - Recording On/Recording Off

Safe and reliable without omission
Collision sensing important files are automatically locked

Built-in high-sensitivity gravity sensor, when sudden braking or collision is sensed
The video/picture is automatically locked and can be viewed through the APP at any time

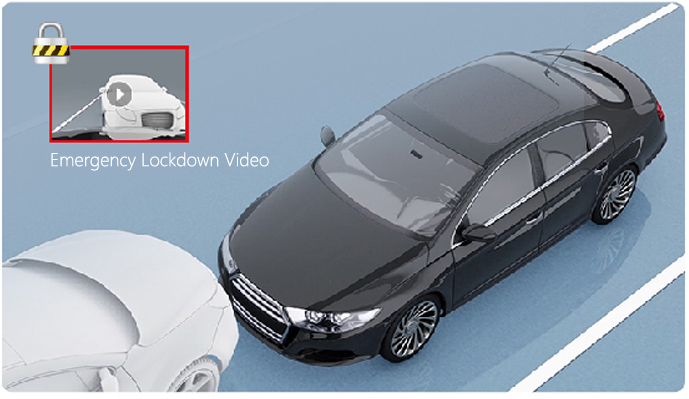

Emergency Lockdown Video
Collision sensing sensitivity can be adjusted through APP


Safe and reliable system hardware block diagram

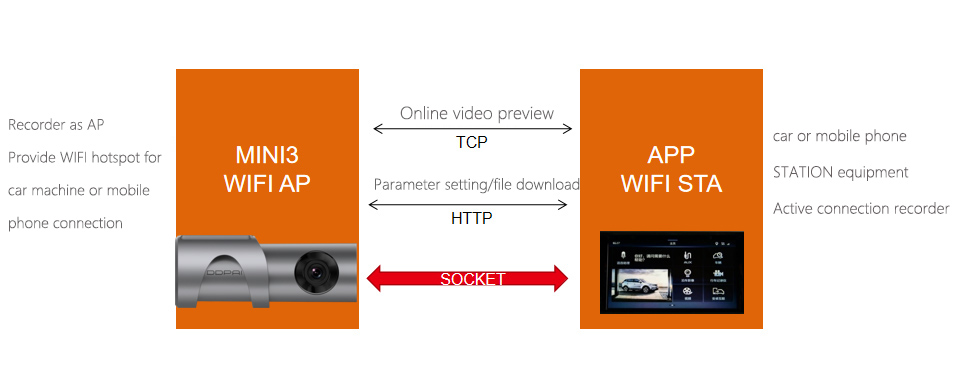

Technical implementation - WIFI interconnection

Main functions of application scheme

Product Specifications



Category attribute Category attribute
CPU NTK96670 Status Light Red and blue light
Sensor CMOS OV 5MegaPixel Parking Monitoring Support (optional step-down line)
lens 6 sets of full HD glass lenses, F1.8 aperture High Temperature Protection Environmental temperature exceeds 75 ℃ automatic shutdown
storage TF CARD Power 5V, TYPEC
Video resolution Circular storage 3240*2160P@30fps Working current ≤1000mA
Field of View Anterior Diagonal 140° Dark current ≤200uA
Image codec H.264 Dust and water resistance IP54
Video format MP4 Dynamic Range ≥72dB
Image format JPEG Signal to Noise Ratio ≥38dB
G-sensor Six-axis gyroscope Minimum Illumination 1lux@45IRE
WiFi 2.4G, 802.11b/g/n Start time ≤4S
MIC  42DB+/-3DB  Operating Temperature -20-70℃
SPEAKER 0.8W/8Ω Storage Temperature -30-85℃

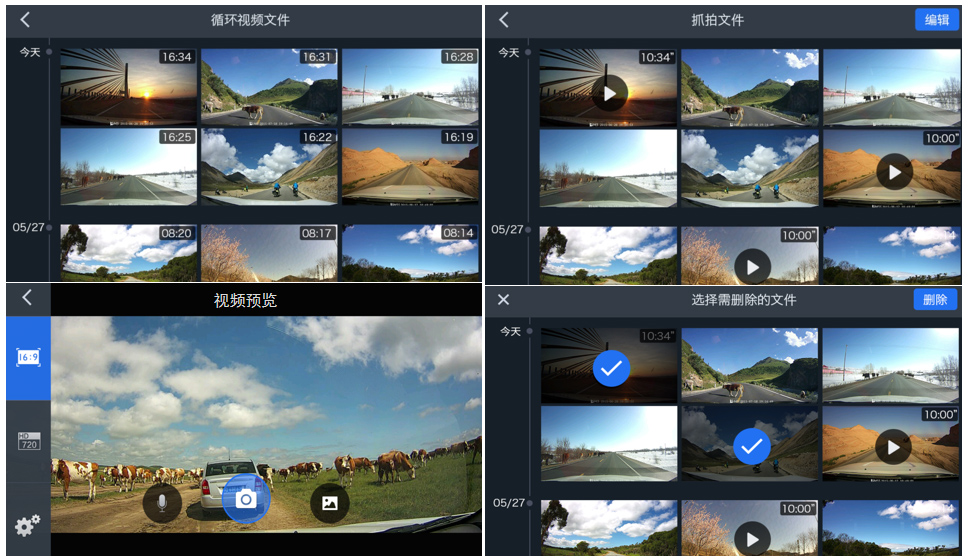

Recorder video view & edit
